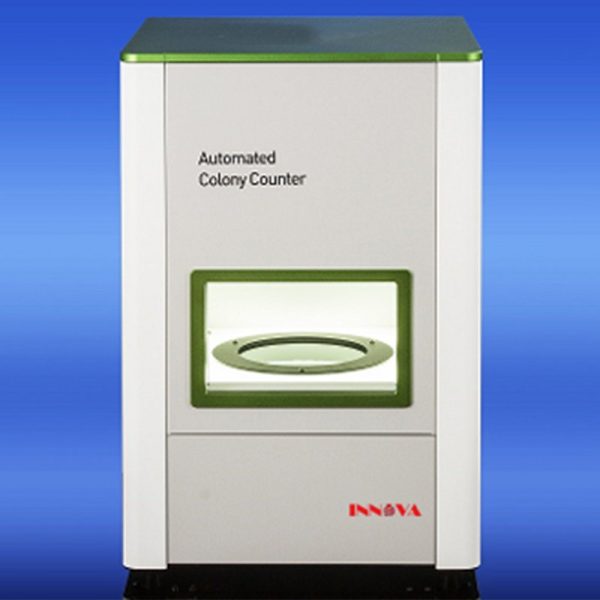

| Model |
INC-34 |
| Main unit |
Fully sealed metal chamber |
| Dimensions |
W335xH475 xD340mm |
| Weight |
25kg |
| Power source |
100-240 V,50-60Hz |
| Operating environment |
10-35°C, 20-80 % humidity |
| Color CMOS camera |
8.5MP，Single pixel size 1.67×1.67µm |
| Fixed focus lens |
Resolution 150lp/mm, Focal Length 8mm, F1.4~F16，C-Mount |
| Resolution |
smallest detectable colony is 0.05 mm |
| Lighting |
upper reflective lighting，Lower lighting（dark field or white background） |
| Automatic colony counting |
Pour and spread plates; filters & 3M Petrifilm |
| Counting on petri dishes |
Ø 55 mm – Ø 90 mm |
| Measurement time |
1 to 3 seconds per petri dish. Depends on PC performance and measurement conditions. |
| Counting |
Automatic with manual control |
| Separate touching colonies |
Automatic or manual mode |
| Colony selection |
Counting according to color, size, shape |
| “Add”/”Delete” |
Counting result be corrected manually by using the mouse. |
| Automatic rejection of impurities |
According to the difference between colonies and impurities in shape, size and color. |
| Measurement |
Automatic measuring area, perimeter, diameter, roundness etc.; manual measuring Line, Angle, Rectangle, Circular, Arc, Curve |
| Image Processing |
Image adaptive enhancement, RGB Component Adjust, Sharpen, Smooth, Filter, Edge Filters, Morphological Filters, Segmentation |
| Data Handling |
Database for storage of images and results with data query, reporting; data transfer capabilities |
| User security |
Password protection of configuration |
| System configuration |
Main Unit only. (PC and Monitor are sold separately，Windows 11 compatible) |
| Software |
Software for colony count |
