Description
SPECIFICATIONS
Technical parameter:
Slide Dryer SD-H
Temperature Range: continuously adjusted in a range of RT to 90℃ and maintained automatically;
Temperature Control Precision: ±1℃;
Suitable Environmental Temperature: 0 – 40℃;
Working Voltage: AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
Power: 200W
Dimensions: 360×350×120mm (W×D×H)
Net weight: 5kg

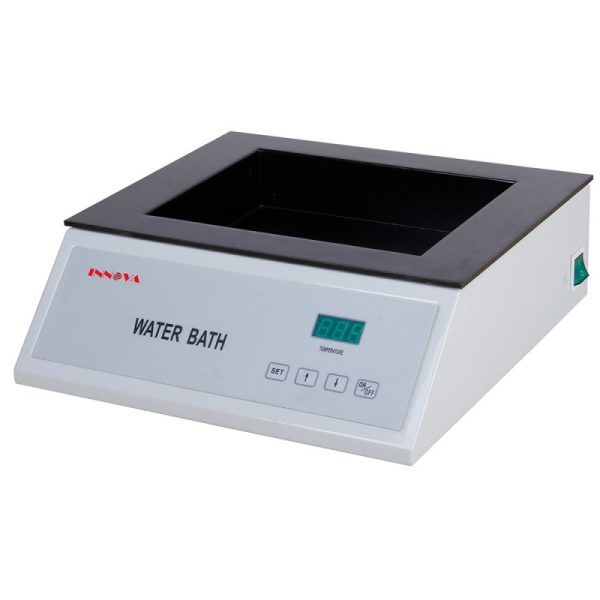

Water Bath WB-P
Temperature Range: continuously adjusted in a range of RT to 90℃ and maintained automatically
Temperature Control Precision: ±1℃;
Dimensions of Water Bath Dish: 240×180×50mm(W×D×H)
Working Voltage: AC 220V±10% 50Hz (standard model) AC 110V±10% 60Hz
Power: 200W
Dimensions: 360×350×120mm (W×D×H)
Net Weight: 5kg
Floatation Bath FB-P
Dimensions of bath bowl: 350mm×220mm×45mm
Temperature range: 0 – 85℃
Temperature Control Precision: ±1℃
Working Voltage: AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
Power: 400W
Dimensions: 515×420×150mm (W×D×H)
Net weight: 9 kg
Floatation Bath FB-2
Temperature range of water bath: RT – 70℃; automatically maintained
Temperature range of slide dryer: RT – 100℃; automatically maintained
Automatic memory and restoration functions: After startup, all preset temperature data are automatically stored in the system.
Temperature Control Precision:±2℃
Dimensions of water bath dish: 210×170×60mm(W×D×H)
Dimensions of drying station (20pcs slides): 250×108mm(W×D×H)
Working Voltage: AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
Power: 400W
Dimensions: 460×310×135 mm (W×D×H)
Net weight: 6kg
Floatation Bath FB-3
Left Temperature range of water bath: RT – 70℃; automatically maintained
Right Temperature range of water bath: RT – 70℃; automatically maintained
Temperature range of slide dryer: RT – 100℃; automatically maintained
Automatic memory and restoration functions: After startup, all preset temperature data are automatically stored in the system.
Temperature Control Precision:±2℃
Dimensions of water bath dish: 155×155×55mm(W×D×H)
Dimensions of drying station(32pcs slides): 405×130mm(W×D×H)
Working Voltage: AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
Power: 600W
Dimensions: 475×460×175 mm (W×D×H)
Net weight: 10kg
