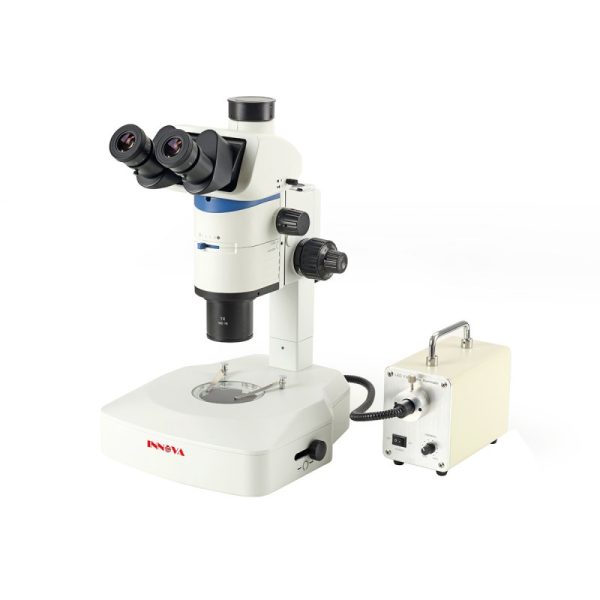

| Stereo Microscope-INO2890S |
| Viewing head |
Tilting trinocular viewing head, 5~45 degree adjustable; binocular: trinocular= 100:0 or 0:100; interpupillary distance 50-76mm; fixed eyepiece tube with lock screw |
| Eyepiece |
High eye-point wide field plan eyepiece PL10X22mm, diopter adjustable |
| Zoom range |
Zoom range: 0.63X~8X, zoom ratio: 12.5 : 1; built-in aperture diaphragm; click stop for0.63X、0.8X、1X、1.25X、1.6X、2X、2.5X、3.2X、4X、5X、6.3X、8X |
| Main objective |
1X main objective, working distance 80mm |
| 2X main objective, the working distance of 20mm |
| Body |
Coarse and fine coaxial focus system, integrated body with focus holder, coarse range: 50mm, fine precision 0.002mm |
| Base |
Plan base without illumination, with black & white plate (dia.100mm) |
| Plan base with transmitted illumination (work with external 5W LED fiber); built-in 360-degree rotatable mirror, location adjustable |
| Ultra-thin base, multi-LED (5W), with digital readout of light intensity and color temperature (3200~5600K) |
| Illumination |
5W LED light box (size: 270X100X130mm) with single fiber (500mm), color temperature 5000-5500K; operating voltage 100-240VAC/50-60Hz, output 12V |
| LED Ring Type Light (200 PCS) |
| Camera adapter |
0.5X/0.65X/1X C-mount |
| system composition |
1, polarized microscope 2, Adapter 0.5X 3, 6300000 HD CCD camera 4, high temperature hot platform 5, Image Analysis software 6, Computer (optional) |
