| Model |

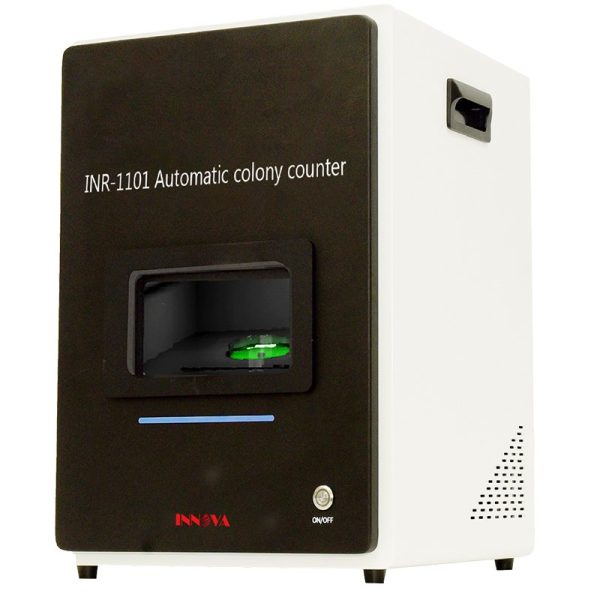

INR-1101 |
| CMOS |
12 million pixel，true color, resolution ratio: 4024*3036 |
| Counting speed |
1000 colonies <1s |
| Colour temperature |
2880K-4170K |
| Upper light source |
Illumination:51.7-985.1 Lux |
| Lower light source |
360°shadowless illumination, Multi-directional transmitted light, adjustablelight source brightness. |
| Sideview |
Illumination:1-4497 LuxBottom transmitted light darkroom shooting systemCircular matrix |
| lmage capture |
Auto focus, auto white balance, auto color temperature control.Front open, automatic elimination of external interference, automaticcentering, black box shooting. |
| Petri dish type |
various 90mm,100mm petri dishes (Pour, spreading, membrane filtration) |
| Automatic impurity removal |
Automatically remove impurity according to the difference of shape, size,color, etc. |
| Colony Morphology Analysis |
Automatic analysis the area, girth, roundness, maximum diameter,minimum diameter. |
| Select counting area |
Basic circle, semicircle, circle, rectangle, sector, and random area. |
| lmage processing |
lmage enhancement |
lmage ada ptive enhancement, color componentenhancement, colony edge sharpening, image flattening. operation.RGB segmentation、Gray scale segmentation. |
| lmage filtering |
Low filter, high filter, Gaussian filter, Gaussian highthrough-put, mean filter, Gaussian filter, Order filter. |
| Edge detection |
Sobel detection、Roberts detection、Laplacedetectionvertical detection、horizontal detection. |
| mage adjustment |
Gray scale conversion、negative phase conversionRGB threechannel brightness、Contrast、Gama adjustment |
| Morphological operationmage |
Erosion, dilation, opening operation, close operation. |
| Image segmentation |
RGB segmentation、Gray scale segmentation. |
| Note measurement |
Instrument calibration |
The system has its own calibration function |
| Colony labeling |
Label with Line, angle, rectangle, broken line,circle, character, curve and so on. |
| Colony measurement |
Measure line, angle, rectangle, circular arc,circle, section, curve and so on. |
| Work temperature |
(0~50)℃ |
| Host size |
(L390×W390×H535)mm |
| Host weight |
about 13.4kg |
| Power consumption |
≤72W |
| Power adaptor |
Input AC100~240V 50/60Hz |
| Output |
DC24V 1A |
