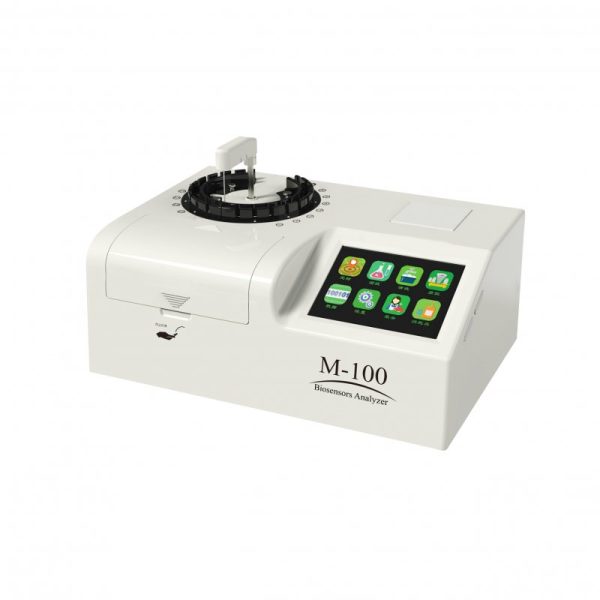

Automatic Biosensors Analyzer

Description

SPECIFICATIONS

Model M-100
Test principle Enzyme electrode method
Electrode Rod electrode
Measuring range Glucose: 0.05 ~ 1g/L
Lactate: 0.03 ~ 2g/L
Glutamate: 0.03 ~ 1g/L
Lysine: 0.03 ~1g/L
Methanol: 0.03 ~ 0.5g/L
Ethanol: 0.03 ~ 1g/L
Xylose
0.03 ~ 1g/L
Glycerin
0.03 ~ 1g/L
Galactose
0.03 ~ 1g/L
Glutamine
0.03 ~ 1g/L
Resolution 0.01g/L
Precision (CV%) <2%
Enzyme membrane life Glucose: ≤30 days
Lactate: ≤30 days
Glutamate: ≤30 days
Lysine: ≤30 days
Ethanol / methanol: 5~10 days
Xylose: ≤15 days
Glycerin: ≤15 days
Glutamine:≤15 days
Ambient temperature 10~35°C
Relative humidity ≤85% (no condensation water)
External dimension 480×320×210mm
Power supply 110V or 220V, 50Hz, 60Hz, separate three-hole socket with good grounding
Power 100VA
Weight 9kg
Screen 8-inch color touch screen
